Installation Guide for KLIP-LOK CLASSIC® 700

Preparation

Before beginning the installation, ensure the following:

• The supports for your cladding are aligned in the same plane, especially for roof slopes ≤5°.
• The minimum roof slope conforms to the recommended guidelines.
• Overhangs of sheets on both top and bottom supports should not exceed recommendations.
• Ensure that the first and last supports and clips are positioned at least 75mm from the ends of the sheet to maintain maximum holding power.

Adjustments:
Make any necessary adjustments before starting the installation, as they may be difficult to correct later.

Sheet Orientation

To ensure maximum weather protection, start laying sheets at the end of the building that will be downwind of anticipated or prevailing weather conditions.

1. Lay sheets toward the prevailing weather.
2. Place sheet bundles on firm supports, not mid-span on roof members.

KLIP-LOK CLASSIC® 700 Installation

1. Begin by fixing wire mesh to the supports, following appropriate building regulations.
2. Position the first clips on each support, starting with the clip closest to the roof edge.

Note: Ensure each clip is at a 90° angle to the sheet edge for proper alignment.

3. Use a string line to align the first row of clips. Fix the first row of clips properly before proceeding.
4. Attach hex-head screws through the top of the clip into the support.
5. Ensure the edge of the roof aligns correctly with gutters, ridges, and other features.
6. Position the first sheet with a minimum 50mm overhang toward the gutter.
7. Engage the sheet with clips by applying vertical pressure on all ribs.

Pro Tip: Ensure each sheet is correctly oriented, with the underlapping rib positioned towards the edge of the roof for easier installation.

Fixing Additional Sheets

1. Install each subsequent sheet by aligning and overlapping the underlap rib of the previous sheet.
2. Ensure full engagement between sheets by walking along the length of the sheet and applying pressure on interlocking ribs.
3. For long spans, take extra care to ensure proper engagement of overlapping ribs.

Final Adjustments and Alignment Checks

1. Occasionally check sheet alignment by measuring across the width of the fixed sheeting. Perform this check halfway through and at the end of the installation.
2. If the last space is narrower than the width of a full sheet, trim the sheet and shorten the clips as necessary.

Klip Lok 700: A Bold, Clean, and Durable Roofing Solution

Klip Lok 700 is one of the top roofing solutions for homeowners and businesses looking to make a bold statement with a roof that combines strength, durability, and a crisp, clean finish. Featuring the benefits of kliplok such as improved rib strength, excellent spanning capacity, and sleek visual appeal, its concealed fixed design ensures long-lasting performance without the need for exposed fasteners, providing a smooth, visually appealing roof. Whether you’re building a new structure or replacing an old one, this roofing system offers a variety of advantages, especially with its ability to handle thermal expansion.

Straight Lines for a Crisp and Clean Finish

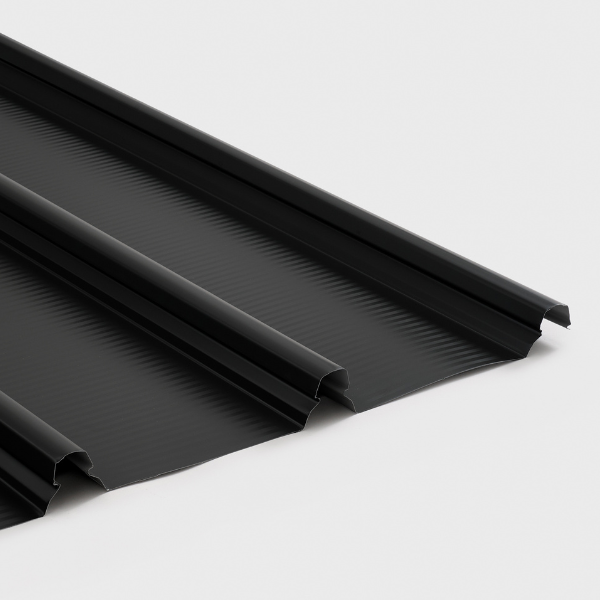

One of the standout features of Klip Lok 700 is its long straight lines and flat pans, which create a clean, modern look. The crisp and clean finish, combined with a strong rib design, contributes to superb weatherproof performance. The straight lines and straight runs add to the bold statement rising from flat pans, making your roof a key architectural feature.

Superior Performance and Long-Term Design

The Klip Lok 700 profile is a favourite among builders for its excellent spanning capacity and weathertight performance. The versatility of Lysaght Kliplok makes it suitable for both roofing and wall applications, with superior weatherproof performance due to the absence of piercings through the cladding. The longitudinal fluting and strong rib offer structural strength, making it suitable for roofing and cladding. Its design allows for thermal expansion, with clips permitting natural expansion and contraction, preventing stress on the material over time. This profile offers clean lines and flat pans, creating a bold and durable roofing choice.

Long-Lasting Colours with Advanced Paint Systems

With Colorbond steel, you can select from a range of colours that stand the test of time. Whether you choose Classic Cream for a traditional look or Pale Eucalypt for a natural tone, Colorbond’s paint system ensures a long-lasting finish that can withstand harsh weather. This paint adds to the longevity and appeal of your roof.

Technical Specifications

The Klip Lok 700 roofing system is available in two thicknesses: 0.42mm BMT and 0.48/0.60mm BMT. The minimum roof pitch for this system is 1° for 0.48/0.60mm BMT and 2° for 0.42mm BMT. The system features a strong rib with longitudinal fluting, offering excellent spanning capacity and a bold statement rising from flat pans. The clips permit thermal expansion of long, straight runs, ensuring a secure and weather-tight seal. Custom cut options are available, with lengths ranging from 750mm to 35m.

Installation Process

The installation process for the Klip Lok 700 roofing system is designed to be efficient and straightforward. The system’s clips permit thermal expansion of long, straight runs, making it easy to install and align the roof sheets. The absence of piercings through the cladding ensures a crisp and clean finish, while the strong rib with longitudinal fluting offering provides excellent spanning capacity. To ensure a secure and weather-tight seal, it is recommended to follow the manufacturer’s installation guidelines and use the recommended fastening system.

Concealed Clips for Durability and Expansion

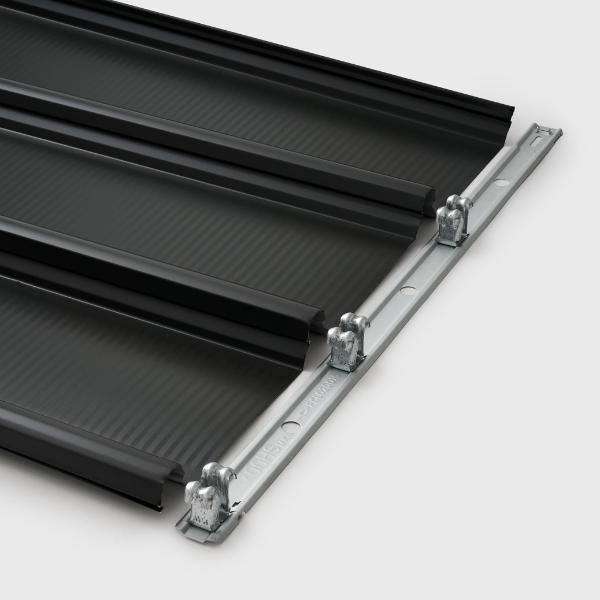

A key feature of Klip Lok 700 is its use of concealed clips, which allow for thermal expansion. These prevent buckling and maintain the roof's clean finish by eliminating the need for visible fasteners. This results in a strong, weather-resistant roof capable of enduring extreme temperatures without compromising its crisp look.

Suitable for All Projects

Whether for residential or commercial buildings, Klip Lok 700 offers the durability and flexibility required for a variety of projects. Its excellent spanning capacity makes it ideal for large areas needing long straight runs, and the longitudinal fluting delivers a bold visual impact. The concealed clips also provide essential thermal performance, ensuring weathertight roofs in different climates.

Conclusion

Klip Lok 700 roofing provides a bold statement with its straight lines and flat pans, offering both visual appeal and excellent weatherproof performance. With a strong rib design, longitudinal fluting, and a durable paint system, this roofing solution is built to last while making an architectural statement.

Sustainability Features

The Klip Lok 700 roofing system is designed with sustainability in mind. The system’s use of steel, a recyclable material, reduces waste and minimizes environmental impact. The system’s paint system is also designed to be durable and long-lasting, reducing the need for frequent repainting and maintenance. Additionally, the system’s superb weatherproof performance ensures that the building remains energy-efficient and comfortable, reducing the need for heating and cooling. Overall, the Klip Lok 700 roofing system is an excellent choice for homeowners and builders seeking a sustainable and environmentally friendly roofing solution.

Warranty Information

The Klip Lok 700 roofing system is backed by a comprehensive warranty program. The system’s manufacturer, Lysaght, offers a range of warranties, including a 20-year warranty on the paint system and a 10-year warranty on the roofing material. The warranty program provides peace of mind for homeowners and builders, ensuring that the system is protected against defects and damage. For more information on the warranty program, please contact Lysaght directly.
